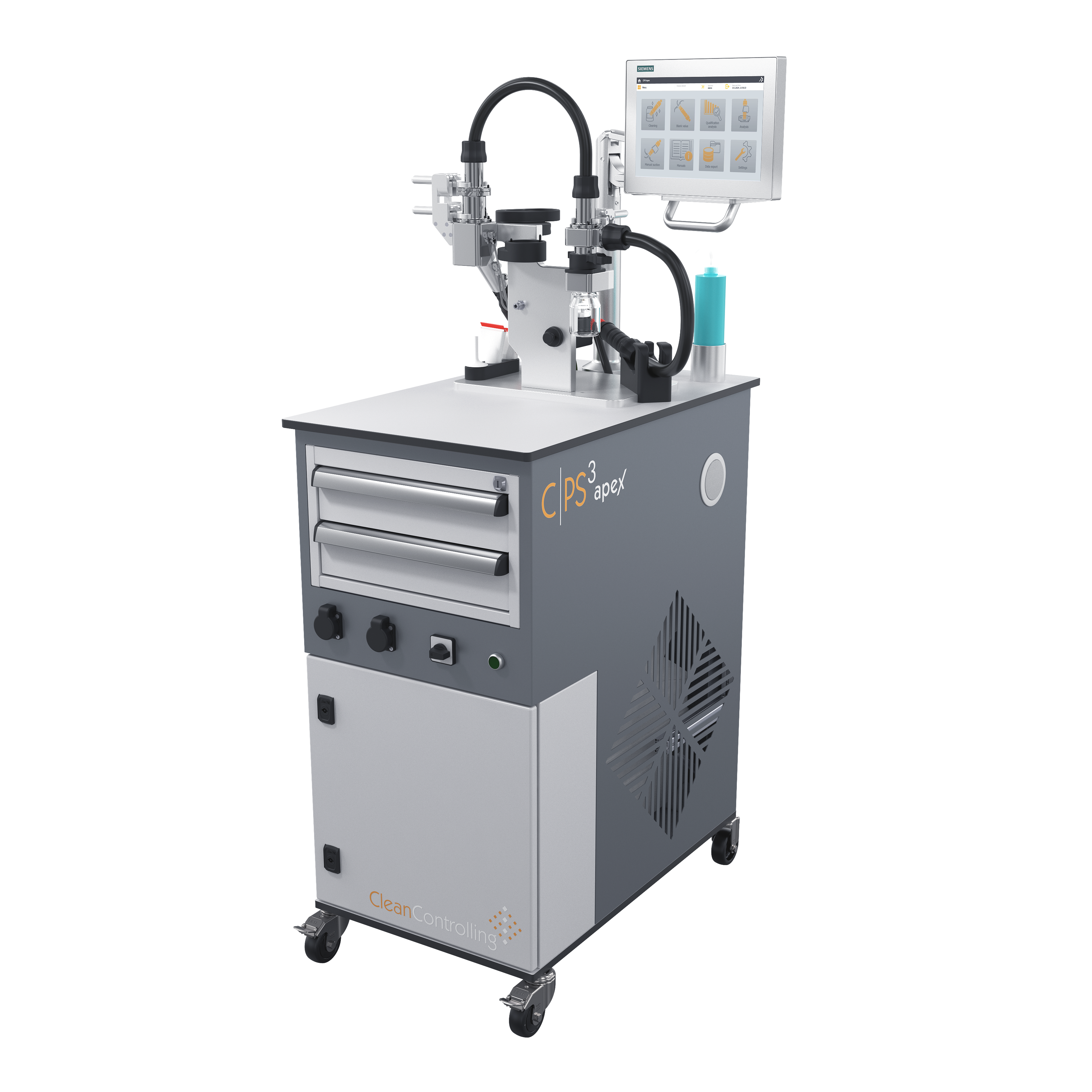

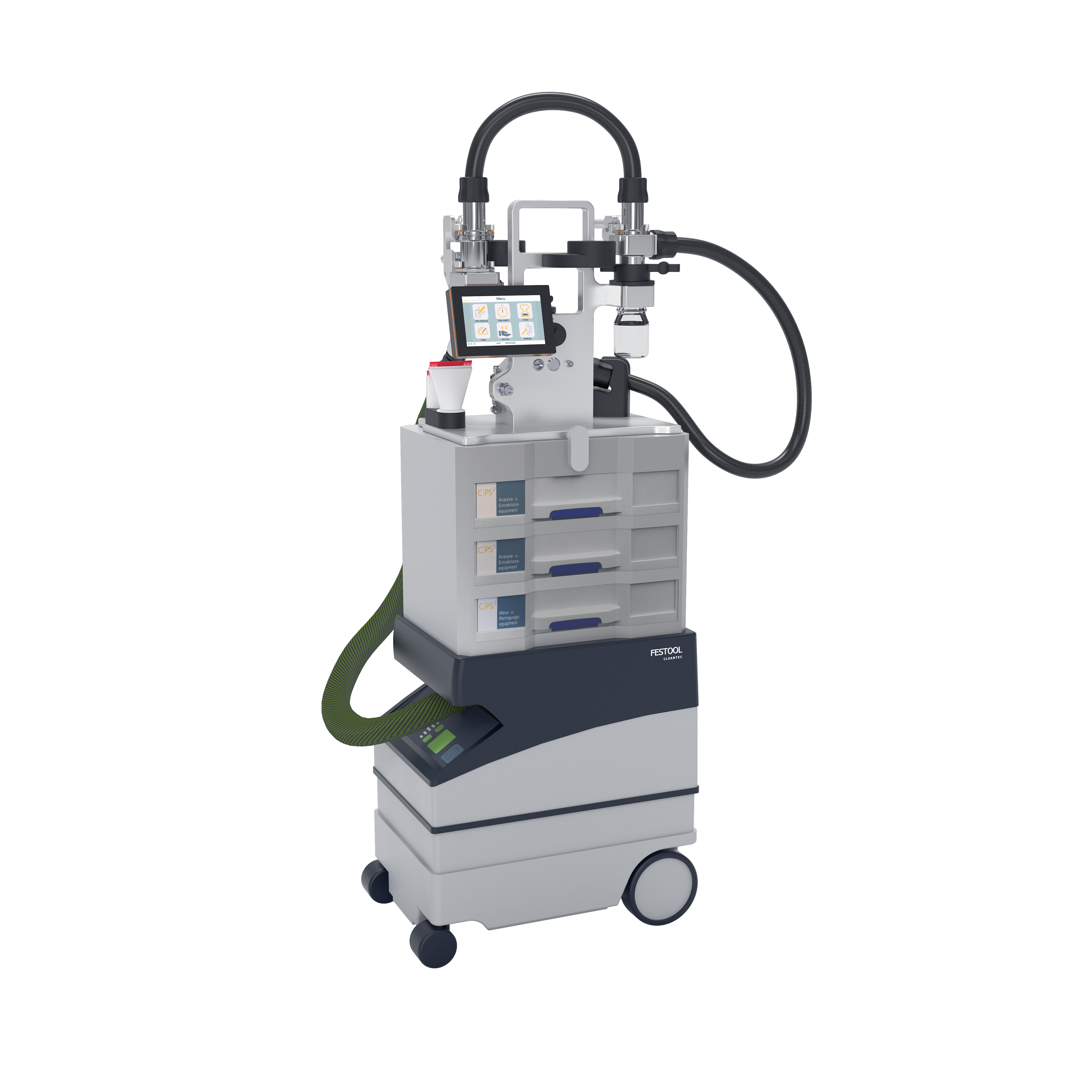

Mobile Particle Suction Extraction System C|PS²

The new, non-destructive, mobile test method with suction extraction (with air) enables economical, faster and application-related cleanliness tests on large-area components or directly in the process environment.

Compared to the wet extraction (as described in VDA 19.1/ISO 16232) this innovative extraction method opens up decisive advantages in various applications with cleanliness inspections

  • of large-scale components with dry-adhering particles
  • within the logistics, e.g. load carriers
  • in the production process, e.g. workpiece carriers in assembly plants in the process environment
  • to check component cleanliness within the manufacturing process

Continue to product page C|PS² and C|PS²robotics...

Continue to eShop...

Particle monitoring

Monitoring accessories for assessing particle appearance in the production environment, including using particle traps or stamps.

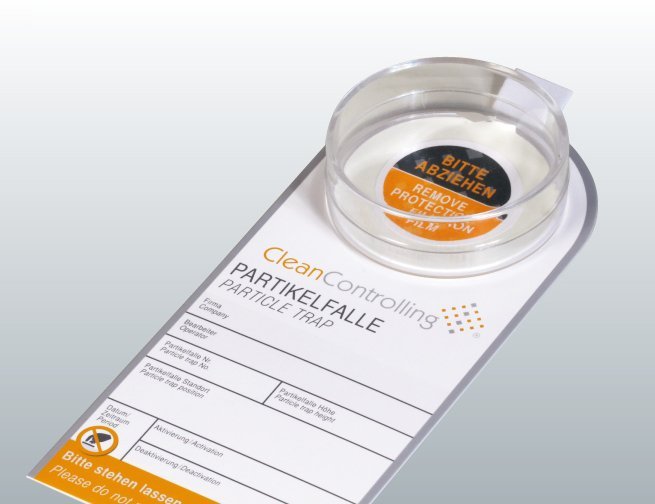

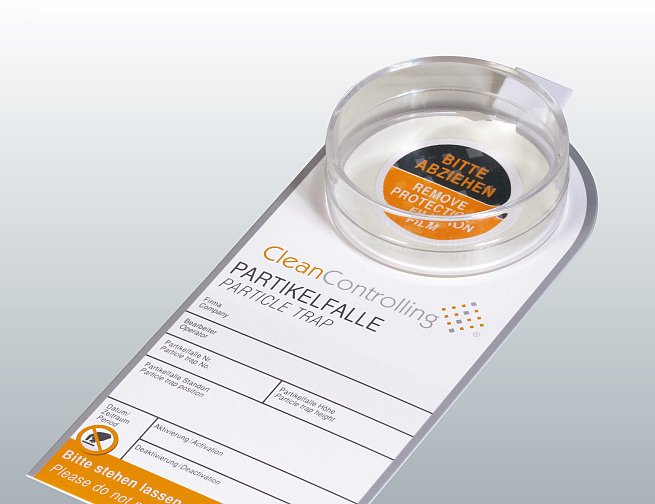

  • Particle trap - Particles that settle on the traps become permanently attached to the filter pad.
  • The particle stamp collects particles from surfaces and permanently fixes them to the adhesive pad.
  • The SEM particle stamp was developed for analyzes with the scanning electron microscope (SEM).
  • The stand allows easy placement of the particles traps in different heights.
  • The mounting bracket allows the rapid and optimal placement of the particle traps at the desired position.

Continue to product page particle trap and particle stamp...

Continue to eShop...

Assembly Cleanliness

Cleanliness areas as room concepts are supported through special products and systems.

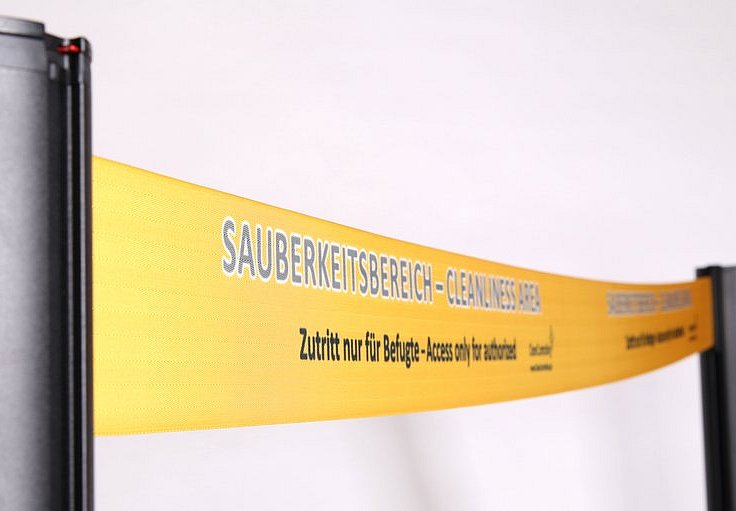

  • Barrier and marking tapes mark and delimit clean zones (e.g. (SaS1) according to VDA 19.2)

  • Clean mats for reduction of particle entry by personnel when entering a cleanliness zone (SaS 1) or a cleanliness room (SaS 2) according to VDA 19.2

  • Glove cleaning system for removal of micro-particles to prevent negative influence of the production process

Continue to eShop...

Laboratory equipment

The right laboratory equipment and accessories are deci-sive for the results of the cleanliness test. CleanControlling offers laboratory technology matched to the needs of a cleanliness laboratory.

  • Vacuum filtration unit for separation of extracted particles from the analysis of liquid on the analysis filter surface
  • Tweezers and clips for clean and safe filter handling and for for gentle handling of components during particle extraction
  • Cleanroom coats and caps for protection of the cleanroom from human contamination and clothes
  • Filter membranes and accessories and accessories for microscopy

Continue to eShop...



More information

Further information and our entire product range with order numbers and prices can be found in our CleanControlling-eShop.
